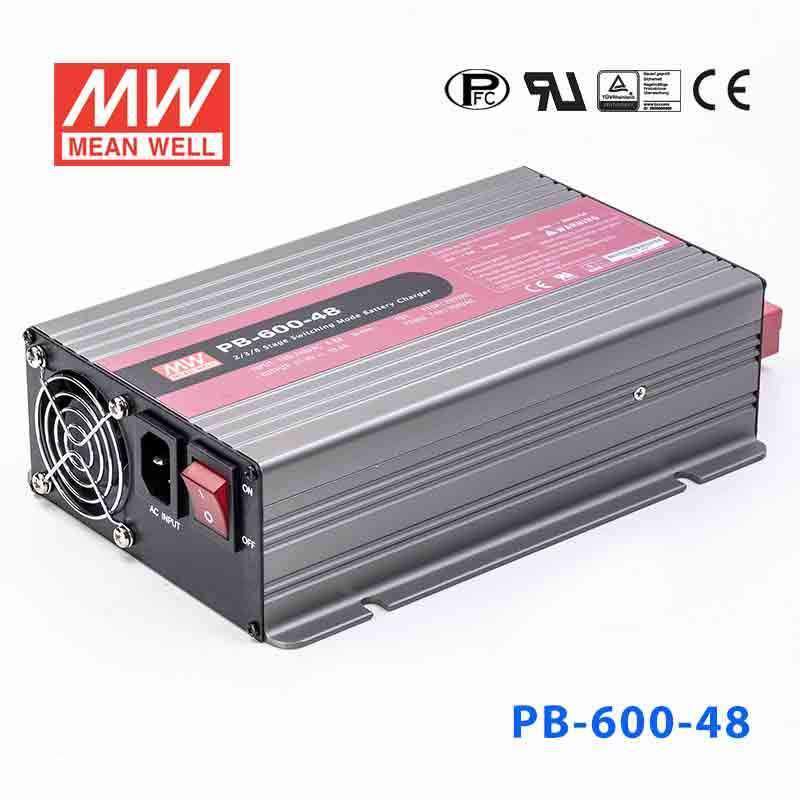

PB-600-48 MEAN WELL Power Supply | HTD Electronics
MEAN WELL

PB-600-48

Manufacturer Model Name
Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

PB-600-48
Quantity Prices (ARS)
Quantity
Unit Price (ARS)
1+
$353.441,76 ARS
10+
$335.769,67 ARS
20+
$328.700,84 ARS
50+
$321.632,00 ARS
100+
$314.563,17 ARS
200+
$307.494,33 ARS
All prices are displayed in ARS. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
90V~264V
Output Voltage
57.6V
Rated Current
10.5A
Power Rating
600W
Waterproof
Non-waterproof
Dimensions & Weight
9.05 x 6.22 x 2.63 in4.85 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Charger for lead-acid batteries (flooded, Gel and AGM) and Li-ion batteries (lithium iron and lithium manganese)
2/3/8 stage charging
Built-in battery rescue function
Controlled by micriprocessor
Universal AC input / Full range
Built-in active PFC function PF>0.95
Protection: Short circuit / Reverse polarity / Over voltage / Over temperature
3-color LED loading indicator
Built-in remote ON-OFF control
Built-in temperature compensation function
Built-in fan speed control (depends on charging current)
3 years warranty

General Specification

AC input voltage range 90 ~ 264VAC selected by switch; 127 ~ 370VDC
AC inrush current (max.) 25A/115VAC; 50A/230VAC
Over-voltage protection Protection type: Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60ÂșC(refer to output derating curve)
Safety standards UL1012, TUV BS EN/EN60335-1, BS EN/EN60335-2-29 (except for 48V), BS EN/EN62368-1(48V only), EAC TP TC 004 approved
EMC standards

EN55022(CISPR22) Class B,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024
Dimension (LxWxH) (mm) 230 x 158 x 67mm
Packing 2.2Kg; 6pcs/14.2Kg/1.76CUFT

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
