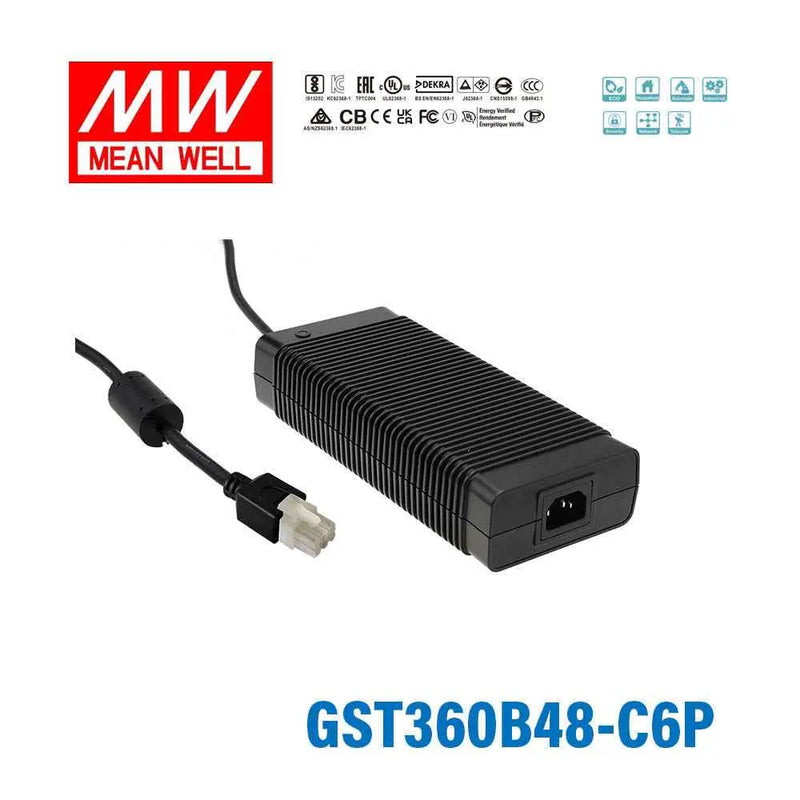

GST360B48-C6P
MEAN WELL

GST360B48-C6P

Manufacturer Model Name
Availability: Out of stock

Request a Backorder

Submit your request and we will confirm lead time.

GST360B48-C6P
Quantity Prices (ARS)
Quantity
Unit Price (ARS)
1+
$146.503,56 ARS
10+
$139.178,38 ARS
20+
$136.248,31 ARS
50+
$133.318,24 ARS
100+
$130.388,17 ARS
200+
$127.458,10 ARS
All prices are displayed in ARS. *Import tariff is included in the listed price. You pay exactly what you see—no surprise fees at checkout. Discounts are applied automatically based on the total quantity added to your cart.
Quick Specs
Input Voltage
85V~264V
Output Voltage
48V
Rated Current
7.5A
Power Rating
360W
Waterproof
Non-waterproof
Dimensions & Weight
8.66 x 3.74 x 1.81 in3.08 lbs

Datasheet (PDF)

Open PDF
If the PDF doesn’t load here, click “Open PDF”.

Features

Universal AC input / Full range

450W peak power(3 sec.)
No load power consumption < 0.5W
Energy Efficiency Level VI
Meet EISA 2007 (Energy Independence and Security Act)
NRCan compliant
MEPS compliant
3 pole AC inlet IEC320-C14
Class I power (with earth pin) only
Protections: Short circuit /Overload / Over voltage/Over temperature
Fully enclosed plastic case
LED indicator for power on
Built-in active PFC function
Fanless design
3 years warranty


General Specification

AC input voltage range 85~264VAC 120~370VDC
AC inrush current (max.) Cold start, 120A at 230VAC
Overload protection 105%~135% rated output voltage, hiccup mode, auto-recovery
Over voltage protection 105%~135% rated output voltage
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: SHORT
Working temperature -30~+70°C (refer to output derating curve )
Safety standards UL60950-1,CSA C22.2,TUV EN60950-1, BSMI CNS14336, CCC GB4943,PSE J60950-1 approved
EMC standards EN55022 class B, EN61000-3-2,3, FCC part 15 /CISPR22 class B, CNS13438 class B,GB9254,GB17625.1
Length of output cable 100cm of UL2464, 16AWGx4C
Dimension (LxWxH) 220x 95x 46 mm
Standard DC plug

C6P: MOLEX 6 pin connector

Similar Models

Same product family and output voltage, with the closest available power ratings.

Environmental Documents
📄 E6) COC-REACH (2026/01/28) 📄 E9) CMRT (2025/04/25) 📄 E14) COC-ROHS 2 (2015/863/EU) (2024/10/04) 📄 REACH Certificate (PDF) (2020/12/03) 📄 ROHS Certificate (PDF) (2020/05/29) 📄 E12) COC-ROHS 2 (2011/65/EU) (2016/10/01)
